350766-1
Manufacturer:
TE Connectivity
Mfr.Part #:
350766-1
Datasheet:
Description:

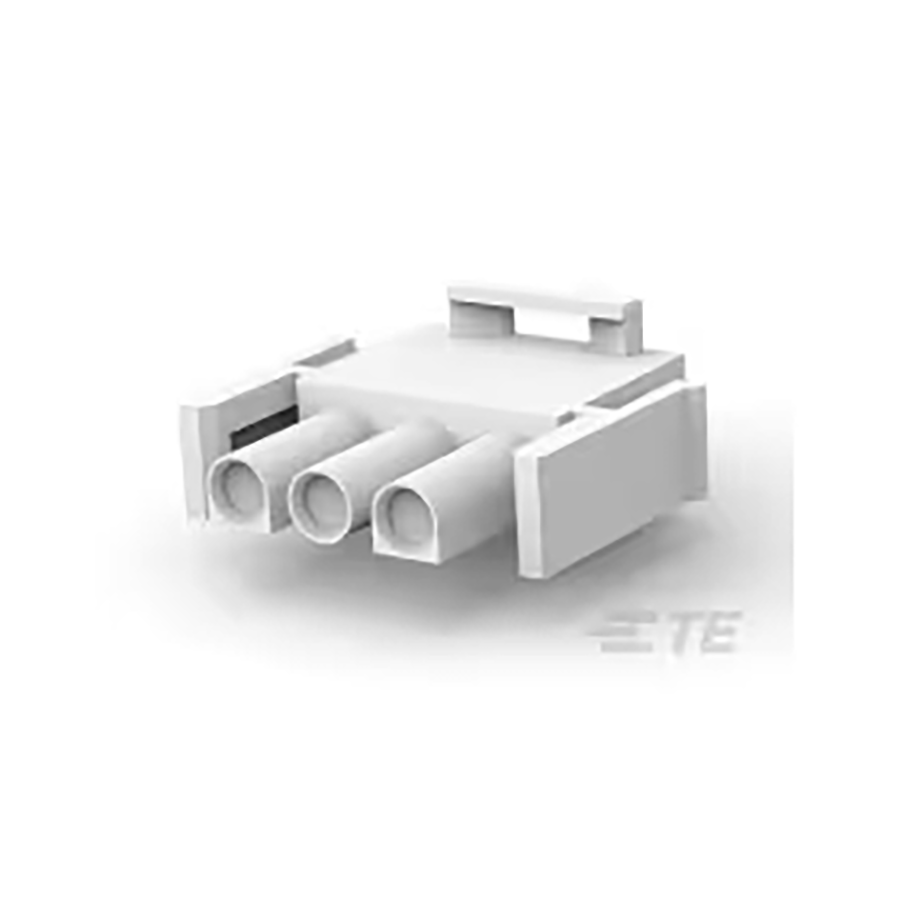

Headers and Wire Housings Free Hanging Plug Number of Positions:3 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Width | 14.73 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 3 |
| Height | 14.73 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 27.43 mm |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 6.35 mm |
| Current Rating | 19 A |
| Max Current Rating | 19 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 3 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Plug |
| Wire/Cable Gauge | 30 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Resistance | 3.5 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 10 AWG |
| Housing Color | White, Natural |
| Contact Gender | Male |
| VDE Tested | Yes |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 2487
Distributors
pcbx
pcbxUnit Price$0.21552
Ext.Price$0.21552
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21552 | $0.21552 |
| 10 | $0.19654 | $1.96540 |
| 50 | $0.17923 | $8.96150 |
| 100 | $0.16170 | $16.17000 |
| 500 | $0.14589 | $72.94500 |
| 1000 | $0.13930 | $139.30000 |
| 3000 | $0.13301 | $399.03000 |
| 5000 | $0.12701 | $635.05000 |
